Configuring Injectable Outcomes & Retry Limits

This guide provides administrators with instructions for setting up and configuring Injectable Outcomes & Retry Limits for HYPR Affirm workflows.

Scope

This article provides comprehensive guidance for setting up and configuring Injectable Outcomes & Retry Limits for HYPR Affirm workflows, including administrator configuration, user experience details, and best practices.

Beta Feature

Injectable Outcomes & Retry Limits is currently in Beta status and is available for the following verification steps:

  • Phone/Email Verification
  • Location Verification
  • Identity Verification
  • Photo ID and Liveness Capture

Prerequisites​

  • HYPR Control Center access with Affirm administration permissions
  • HYPR 10.3.0 or later
  • Understanding of Affirm workflow configuration
  • Knowledge of your organization's security policies and retry requirements

Overview​

Injectable Outcomes & Retry Limits allows administrators to configure step-level outcomes and retry limits for verification steps. This provides granular control over how each step handles Success, Failure, and Error conditions, enabling organizations to implement step-specific dynamic logic.

Before HYPR 10.3.0, Affirm workflows allowed customers to define authentication outcomes (Success, Failure, Error) only at the workflow level. Injectable Outcomes introduces step-level conditional outcomes, enabling organizations to determine different responses based on the result of each verification step within an Affirm workflow.

With this enhancement, customers can configure individual verification steps to have distinct responses for Success, Failure, or Error conditions. Instead of a single workflow-wide decision, organizations can implement step-specific dynamic logic, improving security, fraud prevention, and user experience.

Key Benefits​

  • Step-Level Control: Define how each verification step handles Success, Failure, and Error outcomes
  • Configurable Actions: Set Deny Verification, Redirect Workflow, Continue Workflow, retry attempts, fallback verification methods, and escalation procedures
  • Flexible Retry Logic: Configure retry limits and time windows for each step
  • Enhanced Security: Take different actions based on which step failed rather than applying uniform workflow-wide responses
  • Improved User Experience: Reduce friction for users while enforcing step-specific security policies

Supported Verification Steps​

Injectable Outcomes & Retry Limits is available for the following verification steps:

Phone/Email Verification​

  • SMS Code verification
  • Email OTP verification
  • Phone number verification

Location Verification​

  • IP-based location checks
  • Geographic location validation

Identity Verification​

  • Document verification
  • Identity document validation
  • HR data comparison

Photo ID and Liveness Capture​

  • Document upload verification
  • Biometric liveness detection
  • Photo ID validation
  • Auto capture and real-time feedback capabilities

Configuration Process​

Step 1: Access Workflow Configuration​

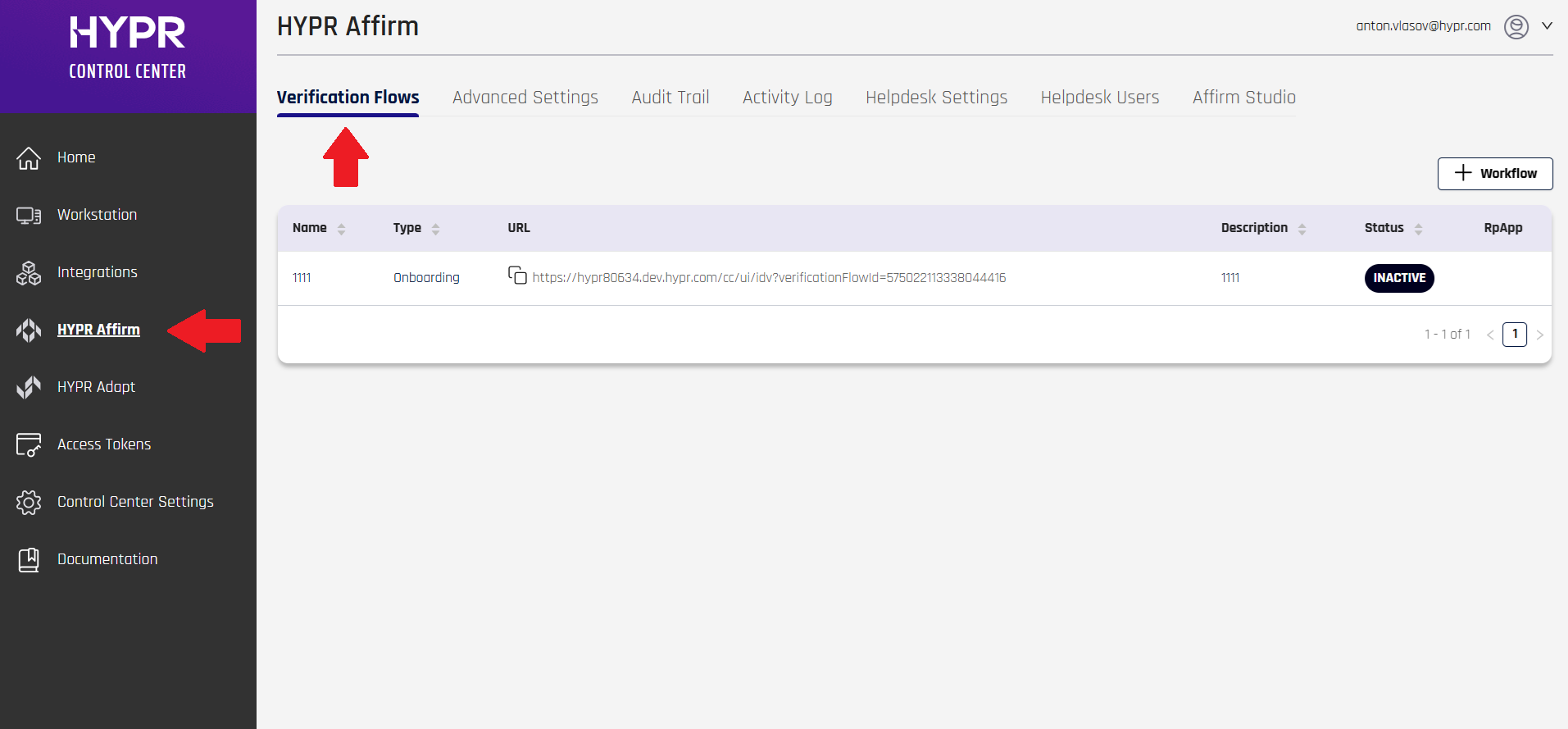

  1. Navigate to Affirm > Verification Flows
  1. Click the workflow you want to configure; doing so will slide in an edit panel for that flow
  1. Scroll down to Verification Steps. Here, you can hover the cursor over a verification step you would like to customize and click the pencil icon that appears to the right of the step

Step 2: Configure Step-Level Outcomes​

For each supported verification step, you can configure the following settings:

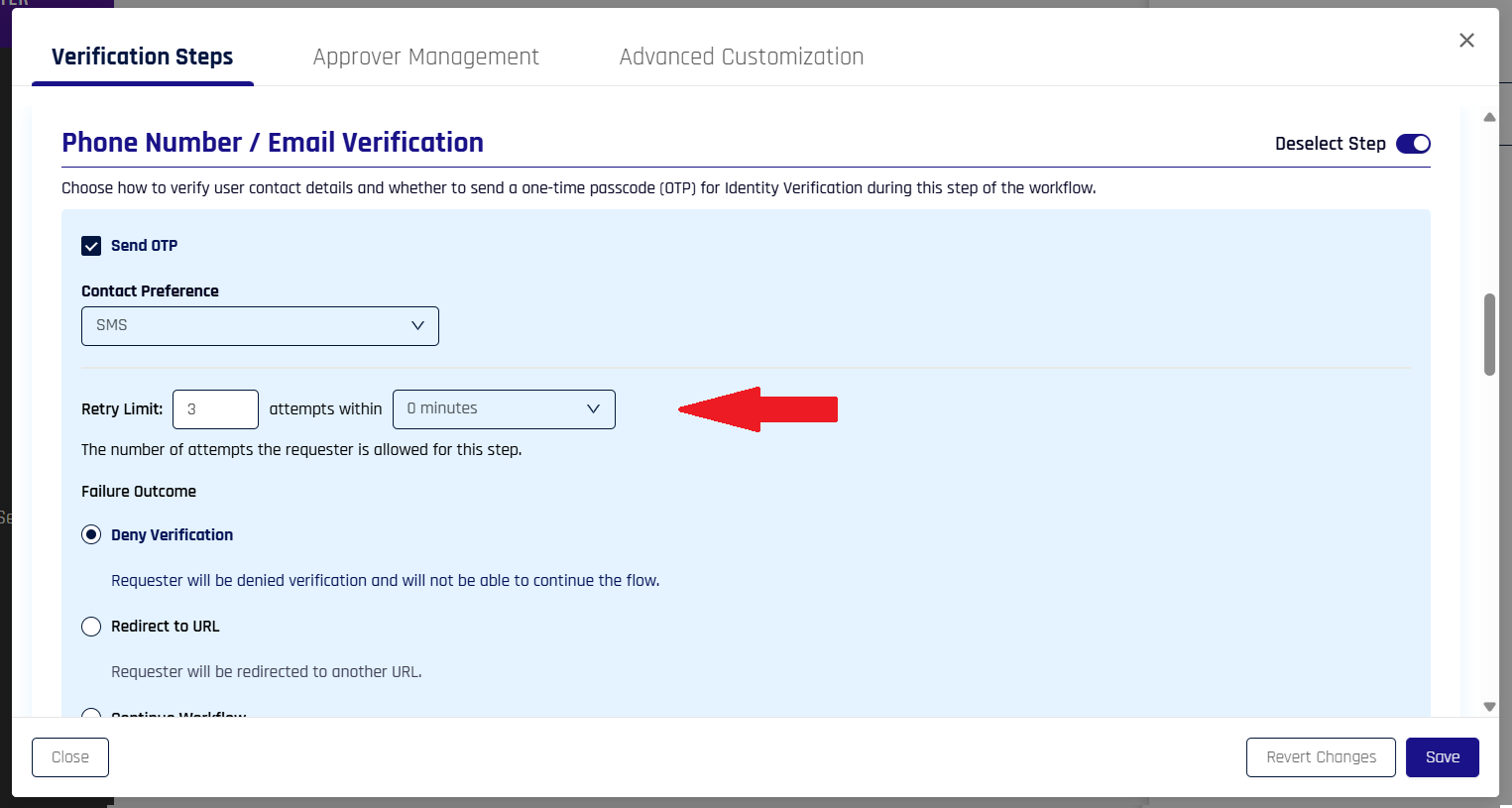

Retry Settings​

  • Retry Limit: Set the number of retry attempts (0-10)

  • Retry Window: Configure the time window for retries (0-60 minutes in 5-minute intervals)

Failure Outcome Types​

Choose one of the following outcomes when a step fails or reaches the retry limit:

Deny Verification​
  • Use Case: High-security scenarios
  • Behavior: User is blocked from continuing the workflow
  • Block Duration: Configure how long the user is blocked (15 minutes to permanent)
Redirect to URL​
  • Use Case: Alternative verification methods
  • Behavior: User is redirected to another URL
  • Configuration: Set static URL or use dynamic URL from runtime
Continue Workflow (No Escalation)​
  • Use Case: Low-risk scenarios
  • Behavior: User can continue despite step failure
  • Result: Workflow outcome will be marked as failure
Continue Workflow (Escalate to Live Chat)​
  • Use Case: Scenarios requiring human oversight
  • Behavior: User can continue but requires manual verification
  • Result: Live chat escalation at the end of the flow

Step 3: Configure Global Settings​

Block Duration​

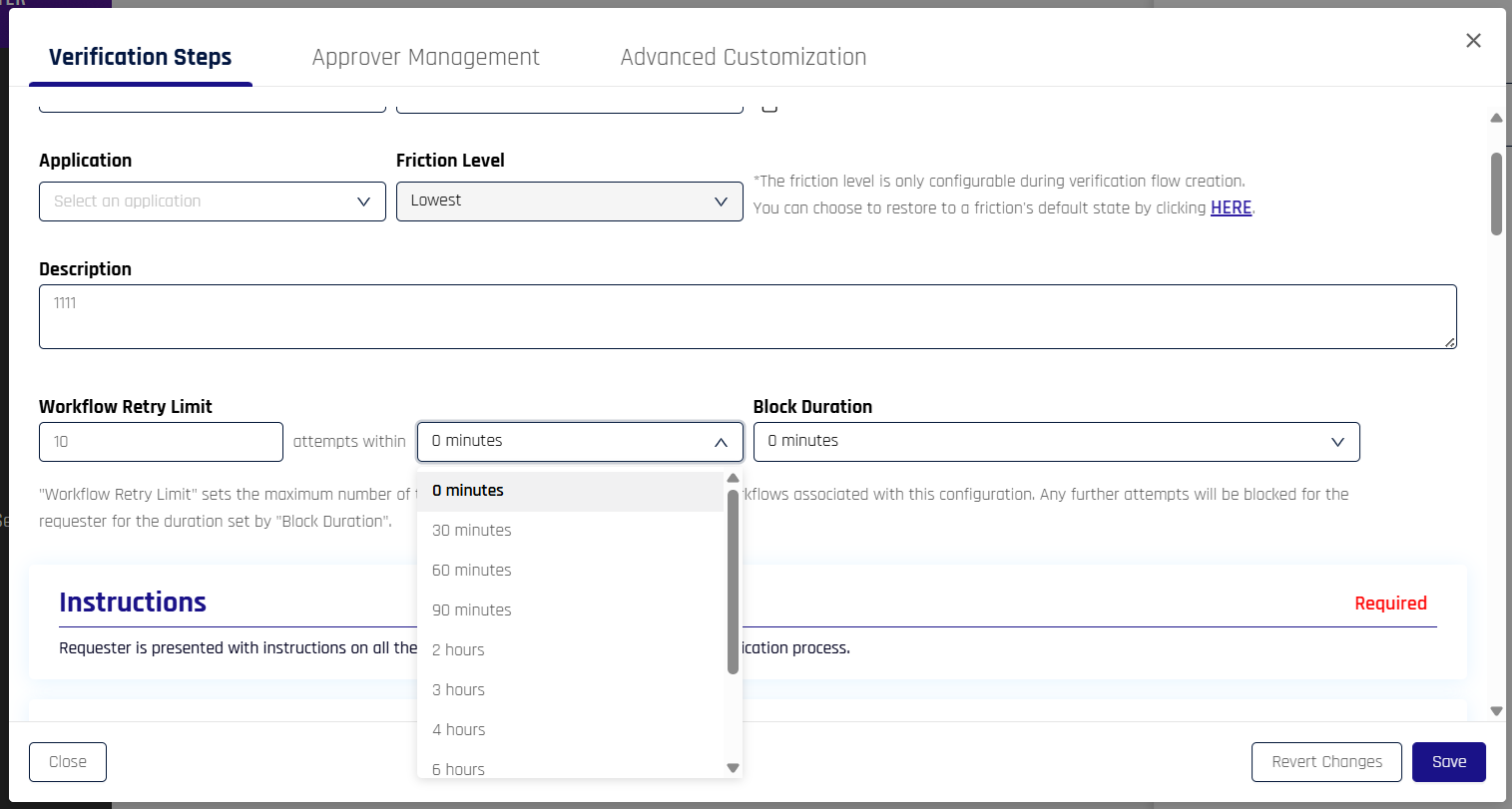

At the top of the Verification Steps dialog window, you can set a default block duration for all users who are denied verification, for example:

  • 0 minutes - No blocks for users
  • 30 minutes - Short-term blocks for minor issues
  • 60 minutes or 90 minutes - Lengthier blocks for failed attempts
  • 24 hours - Extended blocks for repeated failures of high-security workflows
  • Permanent - Manual unblock required

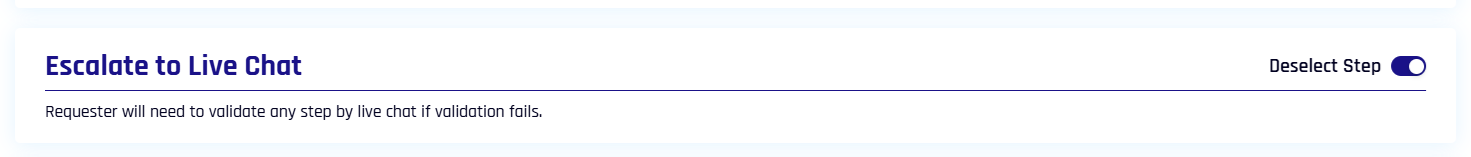

Live Chat Escalation (Optional)​

Configure global live chat escalation settings:

  • Enable Global Escalation: You can enable the Escalate to Live Chat step will trigger escalation for any failed step

Configuration Examples​

High-Security Workflow​

Phone/Email Verification:
  Retry Limit: 2
  Retry Window: 15 minutes
  Failure Outcome: Deny Verification
  Block Duration: 24 hours

Location Verification:
  Retry Limit: 1
  Retry Window: 5 minutes
  Failure Outcome: Deny Verification
  Block Duration: 1 hour

Identity Verification:
  Retry Limit: 3
  Retry Window: 30 minutes
  Failure Outcome: Continue Workflow (Escalate to Live Chat)

User-Friendly Workflow​

Phone/Email Verification:
  Retry Limit: 5
  Retry Window: 30 minutes
  Failure Outcome: Continue Workflow (No Escalation)

Location Verification:
  Retry Limit: 3
  Retry Window: 15 minutes
  Failure Outcome: Redirect to URL
  Redirect URL: /alternative-verification

Identity Verification:
  Retry Limit: 4
  Retry Window: 45 minutes
  Failure Outcome: Continue Workflow (Escalate to Live Chat)

Balanced Security Workflow​

Phone/Email Verification:
  Retry Limit: 3
  Retry Window: 20 minutes
  Failure Outcome: Continue Workflow (Escalate to Live Chat)

Location Verification:
  Retry Limit: 2
  Retry Window: 10 minutes
  Failure Outcome: Deny Verification
  Block Duration: 2 hours

Identity Verification:
  Retry Limit: 3
  Retry Window: 30 minutes
  Failure Outcome: Continue Workflow (Escalate to Live Chat)

End User Experience​

Denied Screen​

When a user is denied due to step failure, they will be redirected to the Identity Verification Denied screen, which clearly communicates the denial and any next steps.

For more information about customizing these screens, see:

Verification Unsuccessful Screen​

When a user is allowed to continue their workflow despite step failure, they will see the Verification Unsuccessful page. After 5 seconds, the requester will be automatically redirected to the next eligible screen. After 3 seconds, a Continue button will appear, allowing the user to interact with the screen manually.

For more information about customizing these screens, see:

Use Cases​

Secure Employee Onboarding​

  • Configure biometric verification failure to result in immediate denial for high-risk systems
  • Set document verification failures to escalate to manual review for new hires or remote employees
  • Allow location check failures to trigger additional authentication factors rather than outright denial

Help Desk Identity Verification Support​

  • Provide additional retry attempts for document verification if users upload blurry or unreadable images
  • Configure step-specific outcomes to reduce support burden
  • Enable escalation to human approvers for complex verification scenarios

IT Admin Customization​

  • Set different retry limits for different verification steps to reduce user frustration while preventing brute-force attacks
  • Configure location check failures to trigger additional security questions instead of blocking access
  • Define custom outcomes based on risk level and user context

Photo and Liveness Detection Integration​

Photo ID and Liveness Capture steps are fully integrated with Injectable Outcomes & Retry Limits, providing enhanced configuration options:

Enhanced Capabilities​

  • Auto Capture: Leverage automatic document detection for improved user experience
  • Real-Time Feedback: Utilize live feedback on document quality issues
  • Retry Optimization: Configure retry limits that work with enhanced capture capabilities

Configuration Benefits​

  • Retry Limits: Set appropriate retry attempts for document capture failures
  • Failure Outcomes: Configure how to handle failed document verification
  • Escalation Options: Set up live chat escalation for complex verification scenarios
  • User Experience: Combine Injectable Outcomes with 10.3.0 photo and liveness enhancements for optimal verification flows

Advanced Configuration​

Dynamic Redirect URLs​

For Redirect to URL outcomes, you can configure dynamic URLs that are provided at runtime:

{
  "failureOutcome": "REDIRECT",
  "redirectUrl": "dynamic",
  "redirectUrlTemplate": "/verification-failed?step={step}&reason={reason}&user={userId}"
}

Conditional Outcomes​

Configure different outcomes based on user attributes or risk levels:

High-Risk Users:
  Phone/Email Verification:
    Failure Outcome: Deny Verification
    Block Duration: 24 hours

Standard Users:
  Phone/Email Verification:
    Failure Outcome: Continue Workflow (Escalate to Live Chat)

Retry Logic Customization​

Configure different retry logic for different steps:

Phone/Email Verification:
  Retry Limit: 5
  Retry Window: 30 minutes
  Failure Outcome: Continue Workflow (No Escalation)

Identity Verification:
  Retry Limit: 2
  Retry Window: 15 minutes
  Failure Outcome: Deny Verification
  Block Duration: 4 hours

Monitoring and Analytics​

Step Failure Tracking​

Monitor step failure rates and patterns:

  • Failure Rate by Step: Track which steps fail most frequently
  • Retry Success Rate: Monitor how often retries are successful
  • Block Duration Impact: Analyze the effectiveness of different block durations

Operational UX Monitoring​

To evaluate impact post‑deployment, review UX signals (completion rate, escalation rate, user feedback) in Analytics.

Security Metrics​

Monitor security-related metrics:

  • Brute Force Attempts: Track repeated failure attempts
  • Blocked User Count: Monitor how many users are blocked
  • Escalation Volume: Track live chat escalation volume

Troubleshooting​

Common Issues​

Users Getting Blocked Too Frequently

  • Review retry limits and time windows
  • Consider increasing retry limits for low-risk scenarios
  • Adjust block durations based on user feedback

Live Chat Escalation Overload

  • Review step-level escalation settings
  • Consider using Continue Workflow (No Escalation) for low-risk steps
  • Monitor escalation volume and adjust accordingly

Redirect URL Issues

  • Verify redirect URLs are accessible
  • Test dynamic URL templates
  • Ensure proper error handling for invalid URLs

Best Practices​

Security Considerations

  • Use DENY outcomes for high-risk scenarios
  • Set appropriate retry limits to prevent brute-force attacks
  • Configure reasonable block durations

User Experience

  • Use CONTINUE outcomes for low-risk scenarios
  • Provide clear messaging about failures and next steps
  • Test workflows from the user perspective

Operational Efficiency

  • Monitor step failure rates and adjust configurations
  • Use analytics to optimize retry limits and block durations
  • Train support staff on new escalation procedures

Testing​

Test Scenarios​

Retry Limit Testing

  • Test retry limits for each configured step
  • Verify that users are blocked after reaching retry limits
  • Confirm that retry windows are respected

Outcome Testing

  • Test each failure outcome type
  • Verify that redirect URLs work correctly
  • Confirm that live chat escalation is triggered appropriately

Block Duration Testing

  • Test different block durations
  • Verify that users cannot retry during block periods
  • Confirm that blocks are lifted after the specified duration
