Branding Customization

If you prefer to use your own corporate branding for the HYPR Workforce Access Client, you can customize the application by setting the appropriate install parameters.

Available Branding Elements
Setting the Custom Branding
Formatting the Custom Name

Available Branding Elements

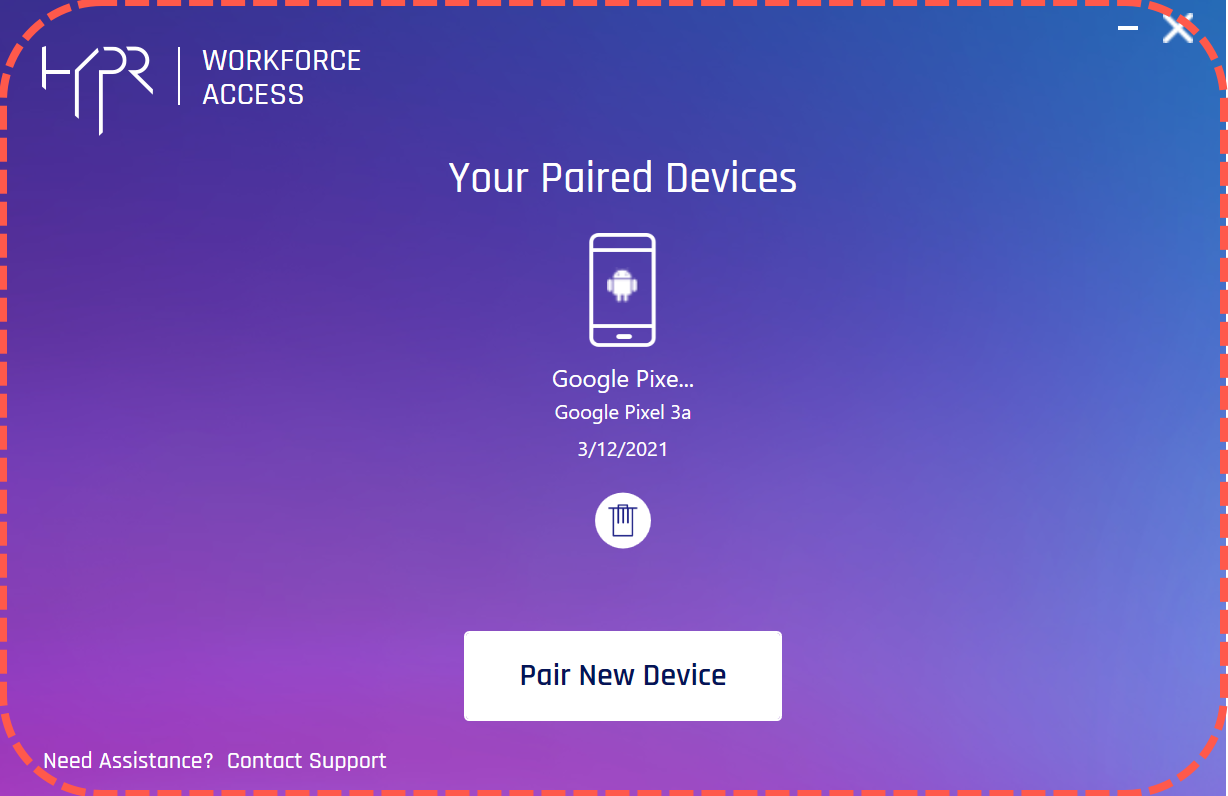

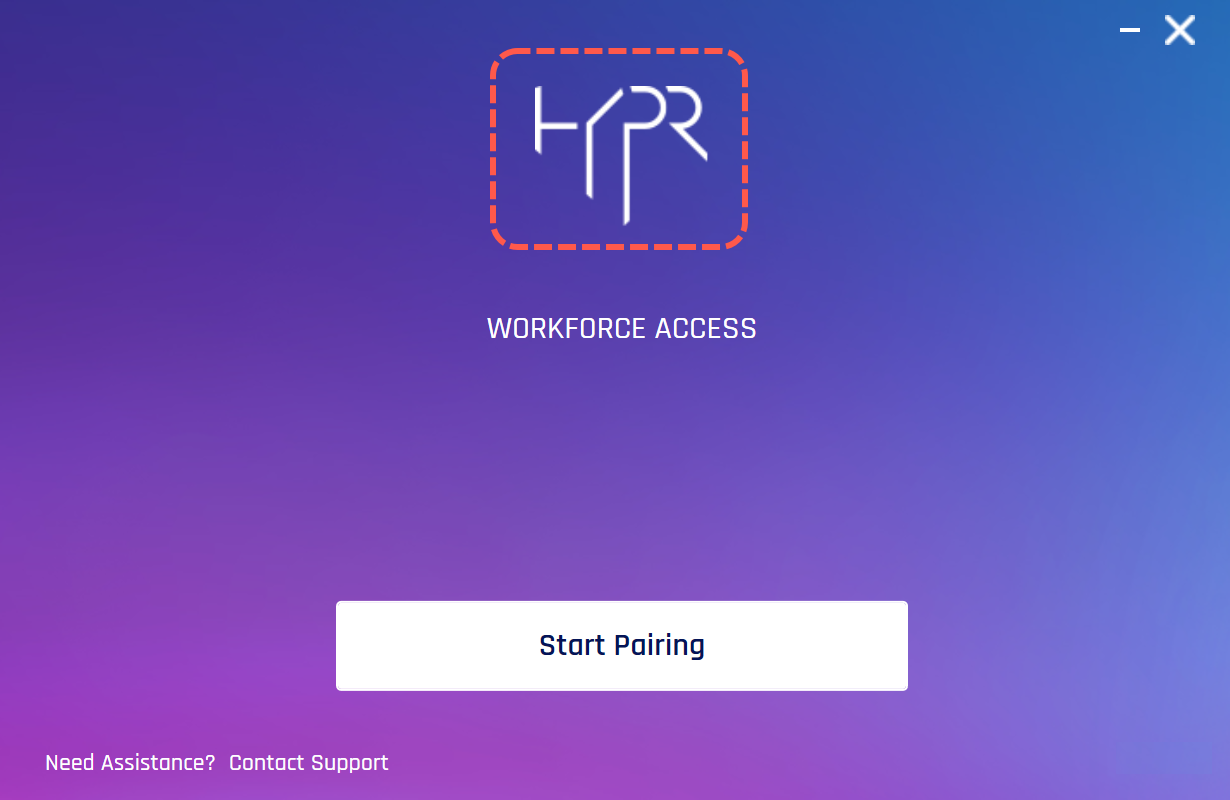

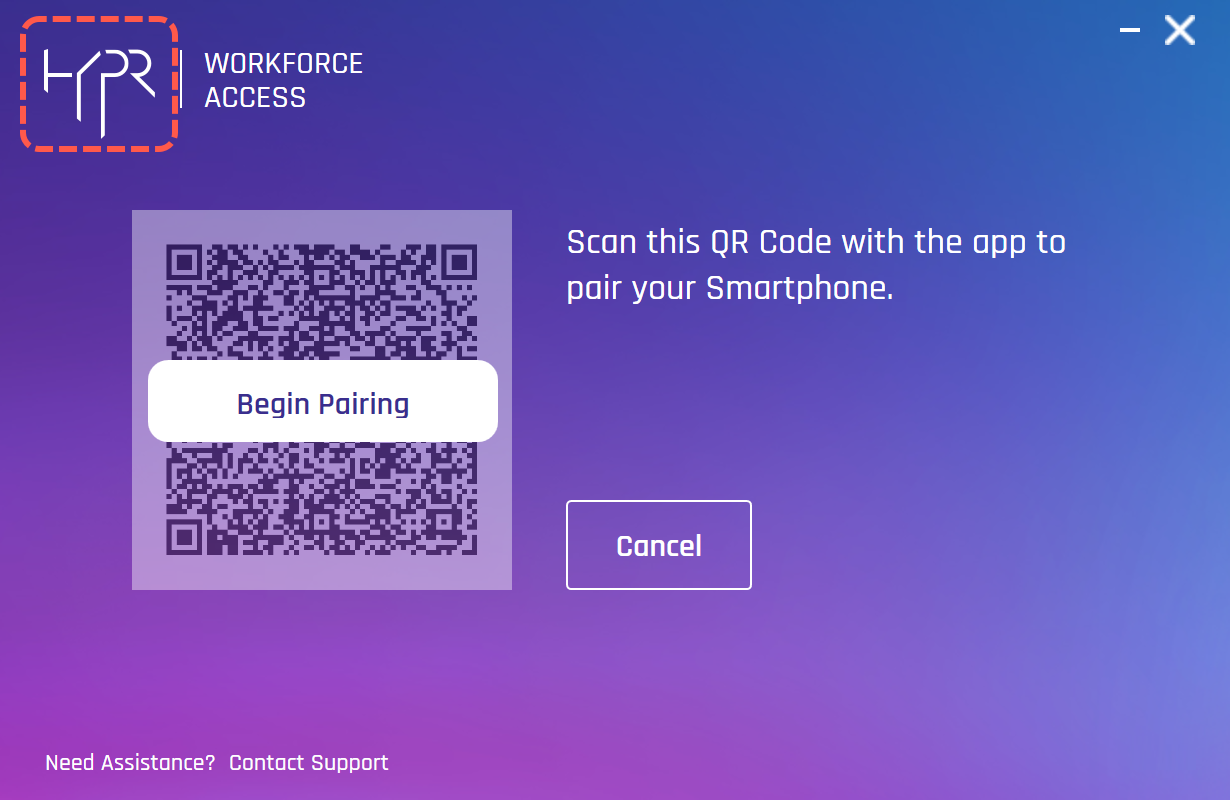

By default, the application is named “Workforce Access” and uses the HYPR logo and background colors.

However, you can change the name, the logo, and/or the background image as desired.

If set during initial install, the custom name will be used for the application UI, for the Desktop and Start Menu shortcuts, and for the Apps and Features list.

📘

Compatibility

To change the logo and background image you must be running Workforce Access Client version 6.12.0 or higher. To change the application name you must be running Workforce Access Client version 6.15.0 or higher.

Image Sizes and Format


Format

Preferred Image Size

Logo

PNG, JPEG, or BMP

(PNG is mandatory if the logo uses transparency)

101x82 pixels

Background

PNG, JPEG, or BMP

622x398 pixels

Other sizes will be stretched/reduced to fit the window. If you’re using a high-DPI display such as Retina on a MacBook, it’s a good idea to double the pixel sizes above for the sharpest possible image.

Image Storage

The logo and background images must be stored locally on the user’s machine. Note that when you pass in the file paths via the configuration parameters you need to double up the backslash character (e.g., c:\\foo\\bar).

Setting the Custom Branding

New Installation

Option 1: Using msiexec with command line parameters

If you’re setting the install parameters directly on the command line, pass in the name and the image file paths via the HYPRUNLOCKAPPNAME, HYPRCUSTOMLOGO, and HYPRCUSTOMBACKGROUND parameters.

msiexec.exe /qn /i WorkforceAccess_x64.msi HYPRAPPID="WindowsUnlock" HYPRRP="https://highlandsbank.com/rp"
HYPRSUPPORT="[email protected]" HYPRHASH="LeM8XnCIy8+Cxm+HKTEOBZr1g3D8odQNHTH+vdu7RWc="
HYPRTEMPLATE="HYPRUser" HYPRINSTALLTOKEN="6a74ce20-2c1e-4c7d-ae9d-14be27e2c197"
HYPRCUSTOMLOGO="C:\\myImages\\hb_logo.png" HYPRCUSTOMBACKGROUND="C:\\myImages\\hb_bg.png"
HYPRUNLOCKAPPNAME="Highlands Bank Employee Login"

Option 2: Using msiexec with the hypr.json file

If you’re setting the install parameters using the hypr.json configuration file, specify the name and the image file paths via the unlockAppName, customLogo, and customBackground parameters.

{
 "version":"1.0",
 "rpUrl":"https://highlandsbank.com/rp",
 "appId":"WindowsUnlock",
 "pinningHash":"LeM8XnCIy8+Cxm+HKTEOBZr1g3D8odQNHTH+vdu7RWc=",
 "supportEmail":"[email protected]",
 "installToken":"6a74ce20-2c1e-4c7d-ae9d-14be27e2c197",
 "customLogo":"C:\\myImages\\hb_logo.png",
 "customBackground":"C:\\myImages\\hb_bg.png",
 "unlockAppName":"Highlands Bank Employee Login",
 "fullUI":"1"
}

Then run msiexec without any parameters:

msiexec.exe /qn /i WorkforceAccess_x64.msi

Upgrade Installation

If you want to customize the branding when upgrading an earlier version of the Workforce Access Client, you can insert the parameters as part of the update process.

The installation commands are the same as for a fresh install (see above). However, you only need to provide the new image path and/or name values. The installer will reuse the existing values for the rest of the parameters.

For example, to upgrade using msiexec with command line parameters, pass in just the HYPRUNLOCKAPPNAME, HYPRCUSTOMLOGO, and HYPRCUSTOMBACKGROUND values.

msiexec.exe /qn /i WorkforceAccess_x64.msi HYPRCUSTOMLOGO="C:\\myImages\\hb_logo.png"
HYPRCUSTOMBACKGROUND="C:\\myImages\\hb_bg.png" HYPRUNLOCKAPPNAME="Highlands Bank Employee Login"

Existing Installation

In order to customize the branding for an existing installation, you’ll need to manually create or edit the Unlock App Name, Custom Background, and/or Custom Logo keys in the Windows Registry.

Please see the Installation and Configuration page for more information about modifying the HYPR settings in the Registry.

Note that changing the name manually in the Registry after installation will affect the application UI but won’t change the Start Menu or Desktop shortcuts. As a result, the shortcuts won’t be automatically removed if you later uninstall the application.

Formatting the Custom Name

When displayed anywhere other than the main screen, the custom name will use multiple lines by default. For example:

Add a vertical bar character (|) to manually control the line breaks. For example, Highlands Bank|Employee Login will render as:

To force the name to display on a single line, place the line break at the end of the text.
