Configuring Outcome: Entra Verified ID

Prerequisites

This outcome requires an Entra ID integration enabled in HYPR and an Entra app registration with the correct permissions — see Entra ID Application Setup for HYPR Affirm. Entra must provide username (UPN) and email address for all target users; additional attributes may be required depending on your verification flow configuration.

Workflow outcome configuration for Entra Verified ID is in Administering HYPR Affirm.

First, define the credential to be used, then assign it to the desired application and use the resulting values in HYPR Control Center.

Define the Issuable Verifiable Credential in Entra ID​

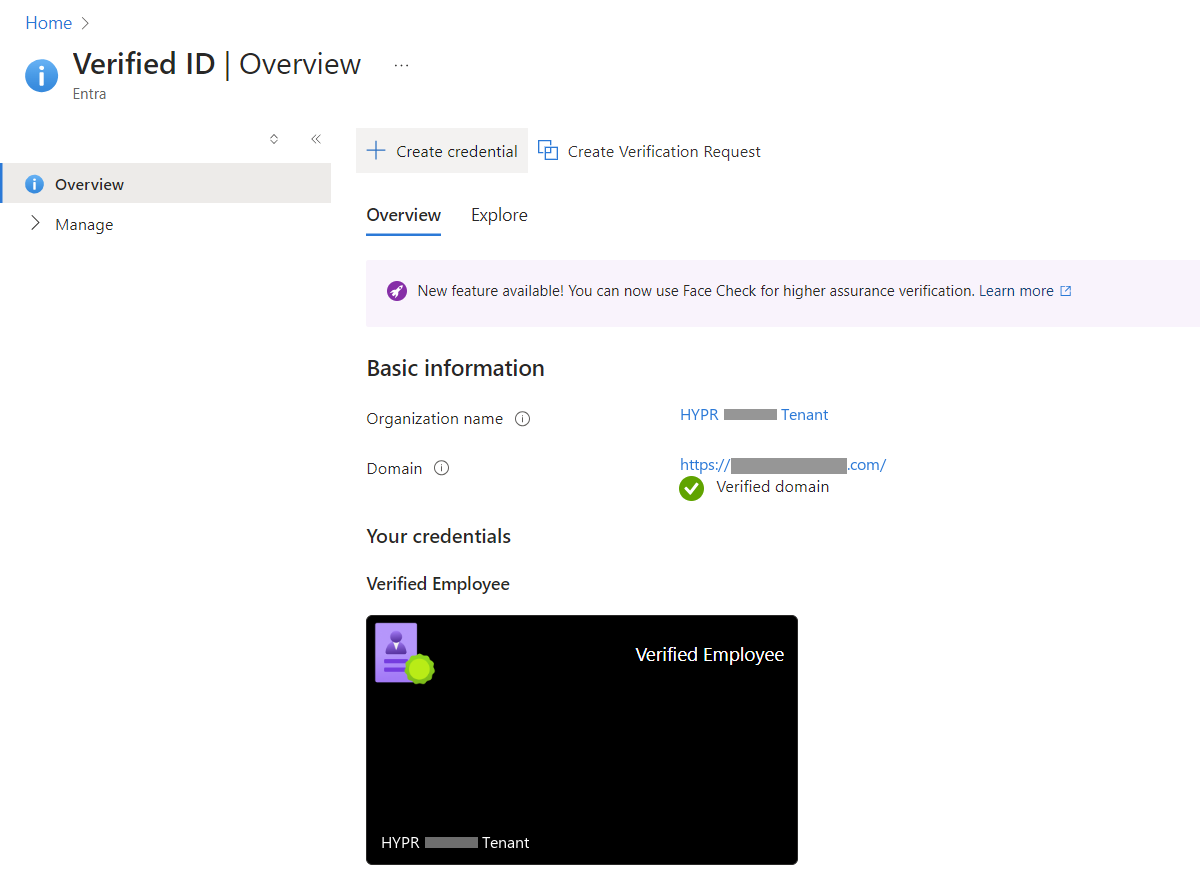

  1. As an Entra ID user with administrative rights, search for Verified ID. Click the result of the same name to open the Verified ID Overview.

  2. Click + Create Credential.

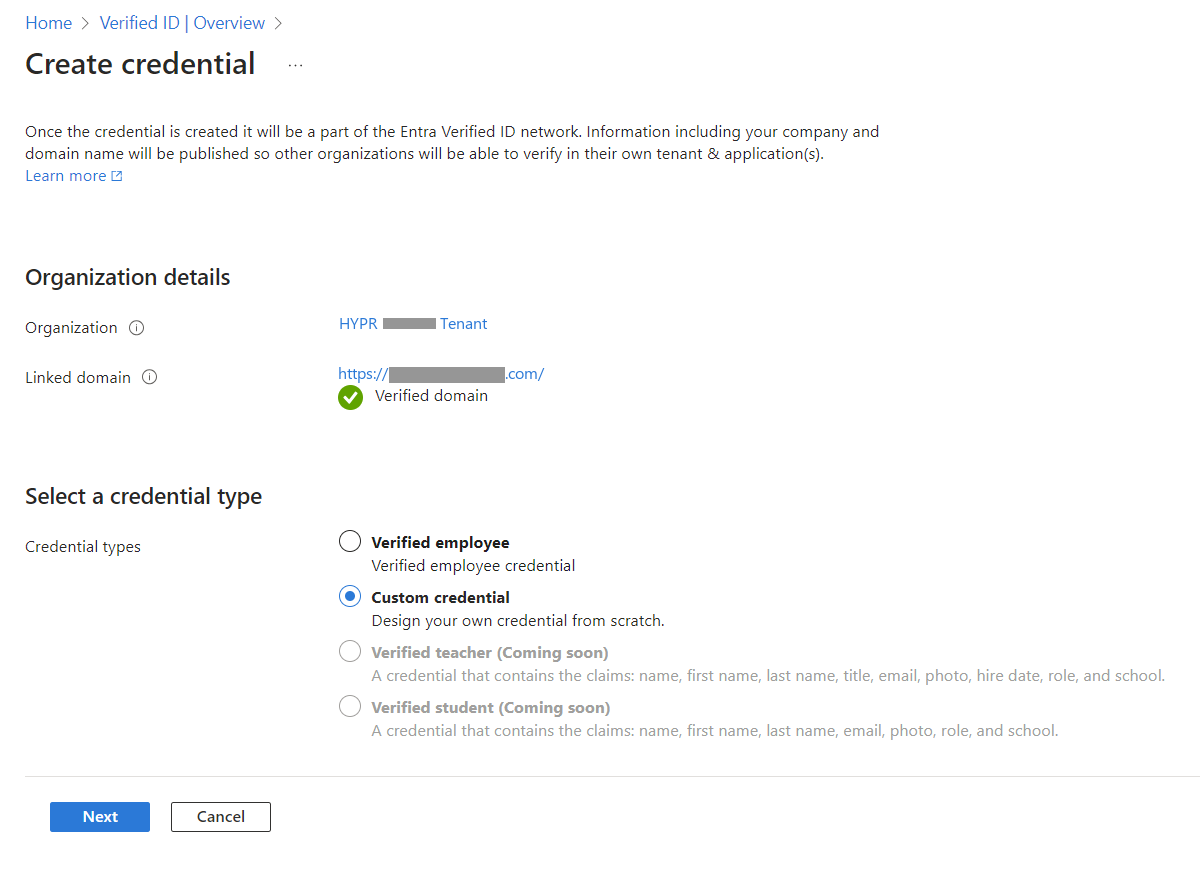

  3. The following dialog opens. Choose Custom credential and click Next.

  4. The Create a new credential dialog appears.

    Complete the fields as follows:

    • Type Verified Credential Expert into Credential name

    • Copy the following code into the Display definition.

      {
        "locale": "en-US",
        "card": {
          "title": "Verified Credential Expert",
          "issuedBy": "Microsoft",
          "backgroundColor": "#000000",
          "textColor": "#ffffff",
          "logo": {
            "uri": "https://didcustomerplayground.blob.core.windows.net/public/VerifiedCredentialExpert_icon.png",
            "description": "Verified Credential Expert Logo"
          },
          "description": "Use your verified credential to prove to anyone that you know all about verifiable credentials."
        },
        "consent": {
          "title": "Do you want to get your Verified Credential?",
          "instructions": "Sign in with your account to get your card."
        },
        "claims": [
          {
            "claim": "vc.credentialSubject.firstName",
            "label": "First name",
            "type": "String"
          },
          {
            "claim": "vc.credentialSubject.lastName",
            "label": "Last name",
            "type": "String"
          }
        ]
      }

    • Copy the following code into the Rules definition field:

      {
        "attestations": {
          "idTokenHints": [
            {
              "mapping": [
                {
                  "outputClaim": "firstName",
                  "required": true,
                  "inputClaim": "$.given_name",
                  "indexed": false
                },
                {
                  "outputClaim": "lastName",
                  "required": true,
                  "inputClaim": "$.family_name",
                  "indexed": true
                }
              ],
              "required": false
            }
          ]
        },
        "validityInterval": 2592000,
        "vc": {
          "type": [
            "VerifiedCredentialExpert"
          ]
        }
      }

    • Click Create when you are finished

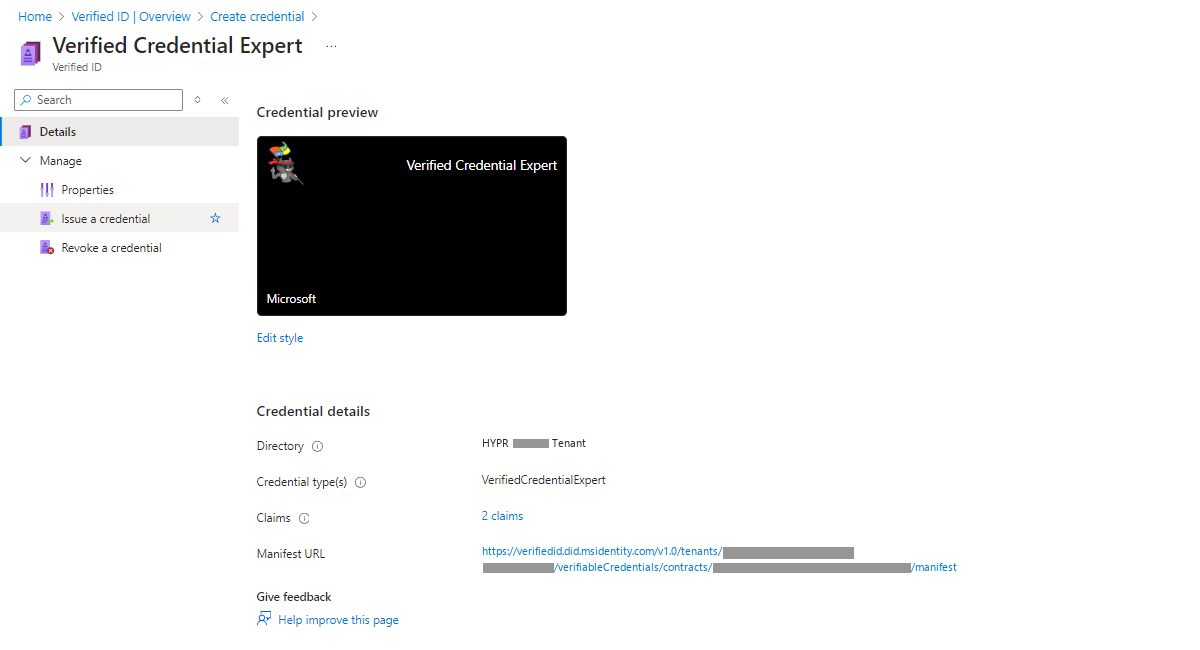

  5. A confirmation page displays. Continue to Obtaining Values for HYPR Affirm.

Obtaining Values for HYPR Affirm​

  1. If you are not already on the Verified ID page, browse to it.

  2. Select Verified Credential Expert (or the name of your credential, if different).

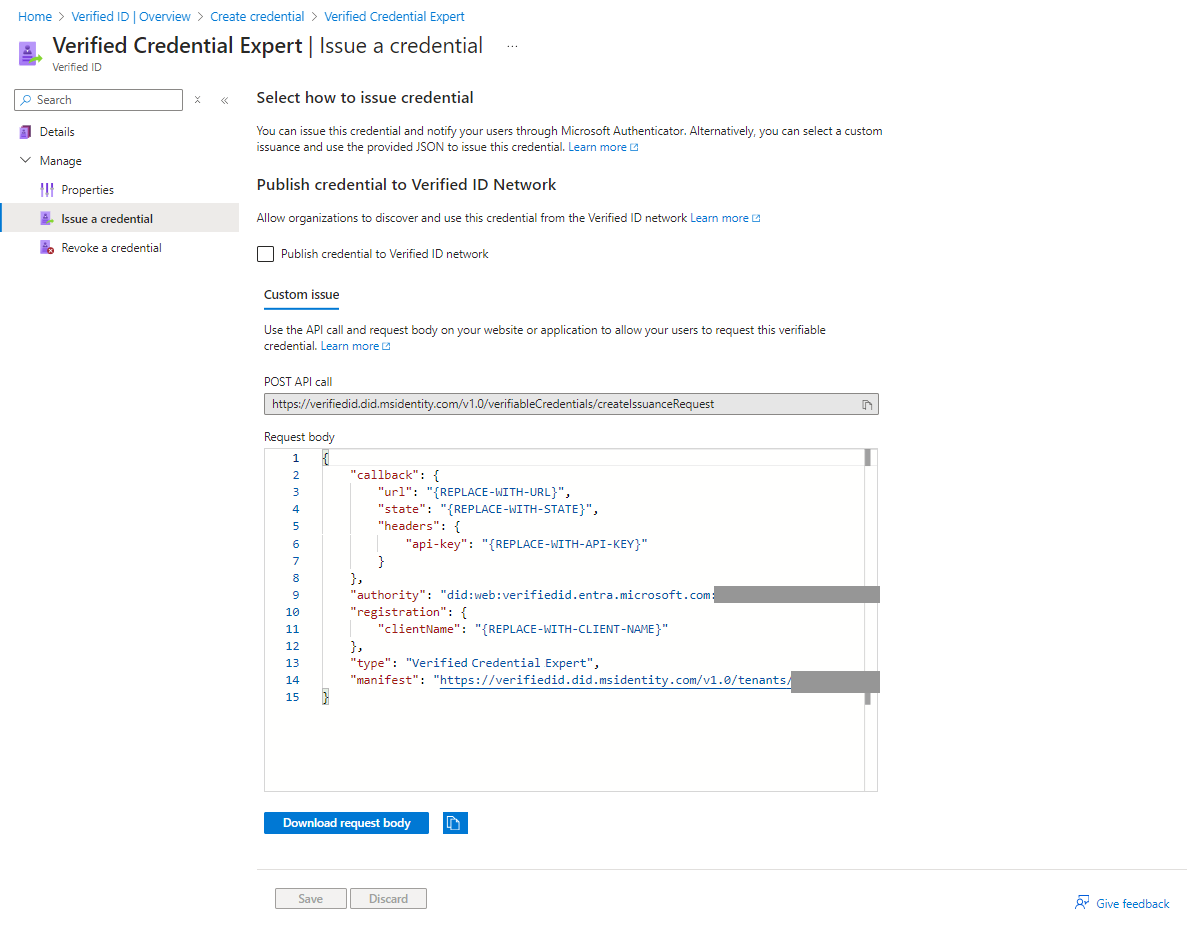

  3. Click Manage > Issue a credential in the left navigation menu.

  4. From the Request body pane, Copy the authority, type, and manifest values; you only need some of the values presented for these attributes, as shown here:

    • authority - Corresponds to the Authority ID field when configuring IdV Outcomes
      • Full value: did:web:verifiedid.entra.microsoft.com:7e2d06b4-220c-43af-a13a-238094d0aba2:ac62242f-9858-34a8-99ae-1d5664466ac4
      • Copy this part: ac62242f-9858-34a8-99ae-1d5664466ac4
    • type - Corresponds to the Type field when configuring IdV Outcomes
      • Full value: Verified Credential Expert
      • Copy this part: Verified Credential Expert
    • manifest - Corresponds to the Manifest Contract ID field when configuring IdV Outcomes
      • Full value: https://verifiedid.did.msidentity.com/v1.0/tenants/7e2d06b4-220c-43af-a13a-238094d0aba2/verifiableCredentials/contracts/555139eb-d5fd-8cbb-32b5-868fb12e11e7/manifest
      • Copy this part: 555139eb-d5fd-8cbb-32b5-868fb12e11e7
See Also

Configuration of Identity Verification (IdV) flows is described in Administering HYPR Affirm.

Assign Entra ID Application Permissions​

For step-by-step instructions on registering an Entra app and configuring the required Verifiable Credentials permissions, see Entra ID Application Setup for HYPR Affirm: Entra Verified ID.
